Wireless Controls and Automation

           Wireless Links                                                                I/O Point-to-Point Monitoring and Control

Migro® Bidirectional - Two Way
.
Ball No parameterization nor programming required
Ball No Internet, Transparent I/O System
Ball No Third party cell, No monthly fees
Ball You have full control over your own carrier
Ball Power system 12/24VDC solar ready
Ball Real time status feedback from the remote site
Ball Fast installation and easy setup




Monitoring Control

  2 Miles (3.km) line-of-sight with Yagi 7 dBi antenna
 ■ Optional Extended range 20km+
 ■ Full duplex bidirectional transmission

Applications: Field operations, irrigation, PLC remote i/o, lighting, process, pumps, generators, solar systems, water management, plantations, remote monitoring, mobile, security, robots, conveyor control, traffic control, test and research equipment, industrial process, plc extension, wire replacement, alarm annunciator, hazardous area remotes.


938204
 4 CH 938204

 4 CH   938204        Please request current price






Bidirectional Wireless  4 Channel I/O Digital

■ Set with Master & Slave  Modules

 Each Module with:

4 Digital inputs, N/O Dry Contact,

4 Relay outputs SPST  5A, 240V Pilot duty class 2

Operation in 12 or 24 VDC   or 120/240VAC
 ■ NEMA4 Enclosure           Specifications

Bidirectional Wireless  4 Channel I/O Digital
.

 938208

8 CH 938208


 8 CH   938208  Please request current price

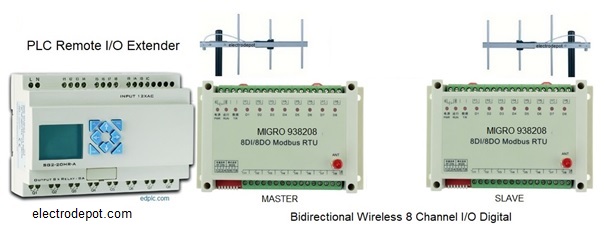

Bidirectional Wireless  8 Channel I/O Digital


Set with Master & Slave   Modules

  Each Module with:

8 Digital inputs, N/O Dry Contact,

8 Relay outputs SPST 5A, 240V Pilot duty class 2

Operation in 12 or 24 VDC    or 120/240VAC
 ■ NEMA4 Enclosure                Specifications

Bidirectional Wireless  8 Channel I/O Digital


939222


Bidirectional Analog - Digital


Bidirectional Analog - Digital


 (2) Two 4-20 mA

  (2) Two Digital Signals

Set with Master & Slave
■  License free 900 MHz Industrial ISM band
■  Antenna sma 50 Ohm,
2 Digital input     Dry Contact N/O
2 Relay outputs:  6.Amp SPDT @240V Pilot Duty
2 Analog inputs:  4-20mA,  Z: 20 Mohm
2 Analog outputs: 4-20mA,  700 ohm @24V
Wiring diagram & installation instructions

NEMA4 enclosures



  939222  Please request current price



Bidirectional Analog - Digital




            Antenna Selection ( TWO  are required )








938433  Yagi antenna


938433  Yagi antenna

12 Element

 433MHz, 14 dBi  5 Mile+
Impedance 50 ohms  N terminal
 Length: 43", Weight: 3.lb
10Ft Coax Cable w Connectors included



938433  Yagi antenna





938455 5 Element Beam  Yagi Antenna

938455
5 Element Beam  Yagi Antenna

433 MHz, Gain: 9 dBi   3 Mile+
Rating: 150 Watts
Impedance 50 ohms  N terminal

Vertical   55 degrees, Horizontal  60 degrees
With N female termination
Base Length: 32", Weight: 4.0lb
10Ft Coax Cable w Connectors included
938455 5 Element Beam  Yagi Antenna




938432 Yagi antenna 3 E

938432   Yagi antenna 3 E

433MHz, 7 dBi  1 Mile+
Impedance 50 ohms  N terminal
Length: 18", Weight: 1.lb
10Ft Coax Cable w Connectors included

938432 Yagi antenna 3 E

Omni base antenna 938450



Omni base antenna 938450

433 MHz, Gain: 5 dBi  Rating: 250 Watts
Impedance 50 ohms
N terminal
Vertical beam 45 degrees With N female termination
Length: 34", Weight: 3.0lb

10Ft Coax Cable w Connectors included



Omni base antenna 938450

938092 14 Omni Antenna
938092

938092


 14" Omni Antenna

433 MHz,  3 dBi  short range line of sight
10ft coax mini cable
  SMA




Specifications
   Digital  Input / Output
Supply power 12 VDC ±10% @ 600 mA
Inputs N/O Normally open digital dry contact
Outputs Relay contact 5Amp SPST 240V Pilot duty
Output Mode Normal or Retain status
Ambient temp 14° to 140° F (-10° to 60° C)
Ambient RH 5% to 95% RH non condensing
Connection Terminal screws DIN
Response 500 msec full duplex
Weight 5.2 lb (2.40kg)  each unit, 2 and 4 channel
Dimensions w optional
NEMA4 Enclosure
12"W x 10"H x 6"D (300 x 240 x 150 mm)
   Radio System
Frequency 433 MHz license free industrial
Receiver  Digital 16 bit, sensitivity -110 dBm
Configuration DIP switch
Data rate 19.2 KBPS Encoded
Antenna external 50 Ohm  (optional)
Compliance FCC CFR part 15.247 ISM
Digital Transmission Gaussian_frequency-shift_keying
Transmitter channels 16 addresses per system
Transmitter power per FCC Part 15.249,  50mV/m @ 3m
Enclosure Selection NEMA4 selection: Fiber or Metal.



Transmission range calculator


       Transmission range calculator


DISCLAIMER:  Radio control equipment in not to be used in life safety. Radio control systems are subject to applications, environmental and atmospheric conditions,
We are not liable of failures on miss applications, radio black outs or interruption of the transmissions.  Radio Installations shall be performed by a certified professional.
