Transmitter & Receiver   943304

  Performance
( 3 km )  2 Miles line-of-sight w Yagi antenna
Operation:  120/240VAC or 12VDC
Transmitter input N/O Dry contact
Relay Output SPDT, 6A Class 2 pilot duty
Heavy Duty Weatherproof, IP65  Fiber enclosure
License free 430 - 450MHz Industrial ISM band
Factory configured systems, Ready to operate
No setup or programming required

Specifications

.
 Operation all 4 channel  Transmitter Receiver
 Continuous Close switch Ch 1
Open switch Ch 1
Energize Relay 1  ON
De-energize Relay 1 OFF

   Specifications      Digital Transmitter
Supply power 120/240VAC or 12VDC /  5watt
Inputs  N/O Normally Open, digital dry contact
Transmitter power per FCC Part 15.249,  50mV/m @ 3m
Transmission Digital Encoded   Gaussian_frequency-shift_keying
Channels 16 addresses per system  GFSK
Input Wiring Din Terminals,  Dry Contact
Response Loop 500 msec
Weight 12 lb (5.40kg)  each unit
Dimensions * 9"W x 9"H x 4"D (230 x 230 x 90 mm) * may vary

   Specifications      Digital Receiver
Supply power 120/240VAC or 12VDC /  5watt
Output   Relay 6Amp, Class 2 pilot duty
Frequency 433 MHz  • License free Industrial ISM band
Configuration DIP switch factory preset
Compliance FCC CFR part 15.247, 95 sub E
Wiring Screw Terminals
Antenna Z 50 Ohm SMA RF connector
Ambient temp  14 to 140 F (-10 to 60 C)
Enclosure  NEMA4, IP65 ABS Plastic

       Wireless Range from: 3 Km  (2 Miles )

 Optional Extended range up to to 16 Km (10 Miles)

Applications:
Industrial Monitoring, Pump control, Monitor remote instruments, sensors,
Lighting control, Packing and mobile system, PLC remote, SCADA,
Factory process control,  Alarms, Generators
Solar,  Wire replacement.

   Request a quotation

943304  Four (4)  Channel System

Package include:
One  4CH Base Transmitter, One  4CH Base Receiver
Two Yagi 938432 Antennas with 10ft coaxial cable, Weatherproof enclosures, & Instructions

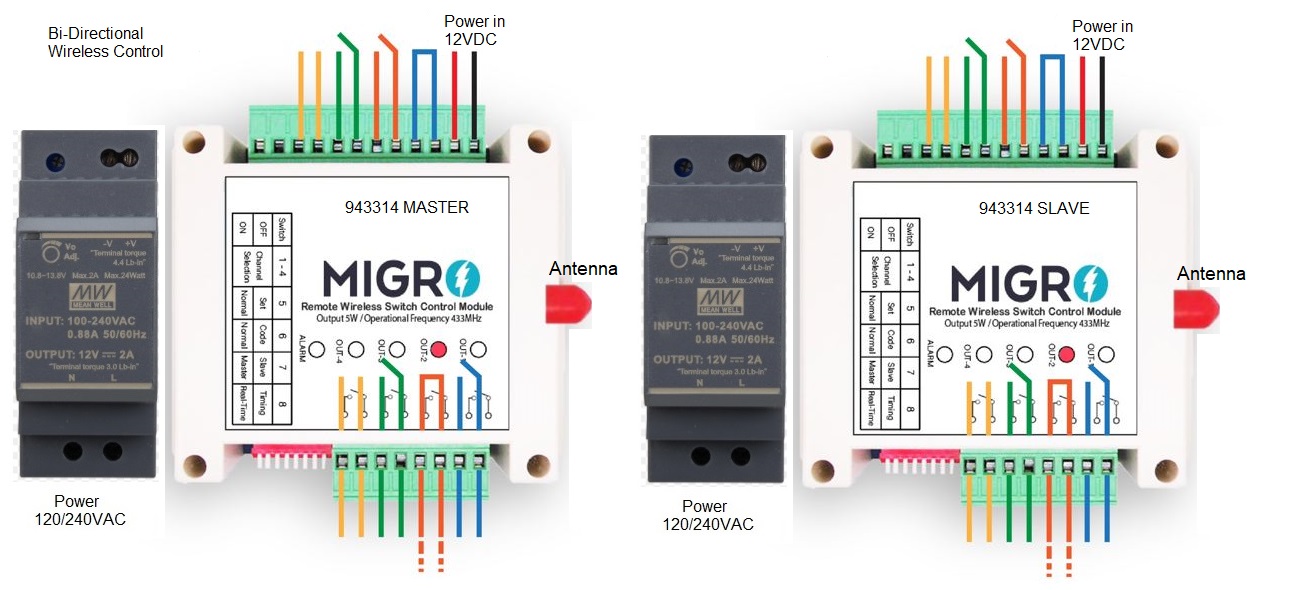

     Wiring Receiver 4 Channel





   Typical application example

	938432   Yagi antenna 3 E

938432   Yagi  3E Antenna,  2Km
433 MHz, Gain: 7 dBi  Rating: 150 Watts
Impedance 50 ohms
Vertical beam 45 degrees -
Horizontal beam 60 degrees
With 10FT Coax Cable and RF Connector
Base Length: 18", Weight: 1.0lb

938432  $299.99 TWO



5 Element Beam  Yagi Antenna 938455

938433 Yagi 5E Antenna,  4Km
433 MHz, Gain: 9 dBi  Rating: 150 Watts
Impedance 50 ohms
Vertical beam 55 degrees -
Horizontal beam 60 degrees
With 10FT Coax Cable and RF Connector
Base Length: 32", Weight: 4.0lb

938433   $477.99  TWO
