Wireless Controls and Automation


Industrial Wireless Radio Controls
Applications:
Industrial Monitoring, Pump control, Monitor remote sites, Tank Level, Lighting control, Remote Mobile system, PLC remote, SCADA, Irrigation, Gates. Factory process control,  Alarms, Generators,  Solar,  Wire replacement.  Remote control,  Solar Well Pump Example

Extended Range MX Modules

Performance
 3 miles ( 5 Km ) line-of-sight
 Extended range up to 20 Km
Not limited to line-of-sight communication


Up to 10 Km of line-of-sight range with MXT4
Up to 3 Km  with handheld device MXTH-4
Migro Encoding/Decoding technology
Four (4) Independent Channels
Output selection: Latch or Momentary
Shielded Metal case NEMA4 - IP65
Antenna  931501 or 931487 (not included)
Power: 12 VDC - Solar Ready
Dip Switch 12 Bit Code setting
Multiple Transmitters and Receivers
Optional repeater if necessary
Factory pre- configured system, Ready
No setup or programming required
No fees from carriers, No hacking
No software or internet

Optional Control Modules

Support & Manuals

MXT-4 Transmitter   $499.99
MXR-4 Receiver   $489.99

   Specifications      Digital Transmitter
Supply power  12VDC /  8Watt
Inputs  N/O Normally Open, digital dry contact
Transmitter power per FCC Part 15.249,  50mV/m @ 3m
Frequency 154MHz  • License free MURS band
Transmission Digital Encoded   Gaussian_frequency-shift_keying
Channels 16 addresses per system  GFSK
Power draw Standby 1mA, Transmission 1200mA
Response Loop 500 msec
Weight 5.36 lb ( 2.44kg )  each unit
Dimensions NEMA4, IP65  8.76" W x5.75" H x 3.24" D
   Specifications      Digital Receiver
Supply power  12VDC /  5Watt
Output   Relay 8Amp, SPDT (NO/NC) Class 2 Pilot Duty
Output mode (*) Continuous - Momentary or Latching
Configuration DIP switch factory preset
Compliance FCC CFR part 15.247, 95 sub E
Power draw Standby 30mA, Full load 400mA
Antenna Z 50 Ohm, RF Connector  SO-239
Ambient temp  14 to 140 F (-10 to 60 C)
Enclosure  NEMA4, IP65  8.76" W x5.75" H x 3.24" D

Wiring Terminals


COMPLIANCE: per FCC Part 15.249, 50mV/m @ 3m
Circuit board Compliance with UL796 and UL 94
MIL-STD-461E for Electro-Magnetic Interference (EMI)
MIL-STD-901D Grade A for High Impact Shock
MIL-STD-167B for Vibration





ANTENNA Selection 154Mhz - 50 Ohm:

Short Range

Medium Range

Long Range

Long Range
931501 931487 931490 931503 Yagi 3 Element
2.0 dBi,  17 inch 4.5 dBi, 37 inch 6.7 dBi, 125 inch 9.2 dBi, 42 inch
PL-259 SO-239 & 12ft Coax SO-239 SO-239
931501    $79.99


931487    $179.99


931490   $299.99

931503  Yagi   $399.99


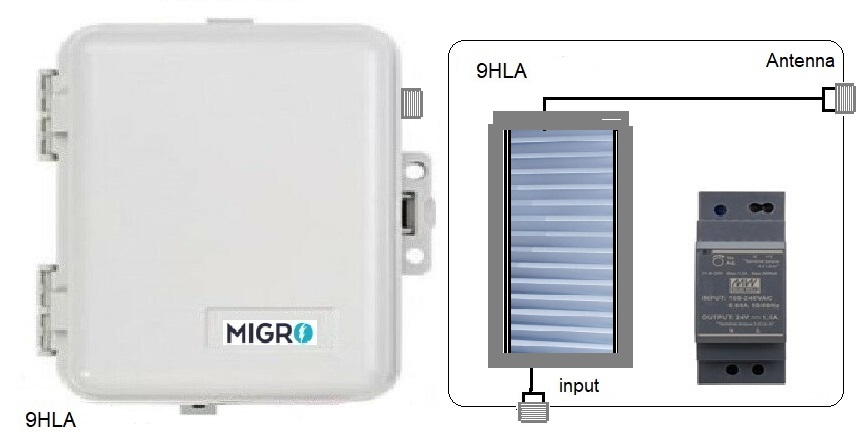

Optional Control Modules for Migro Series:  MX, Migro-27, Migro-154 Wireless systems

9FS1 Single channel continuous mode module

OPERATION:  Transmitter sends an interval pulse as long as the input is activated by a control, switch or sensor etc. The Receiver at the other end  turns the output ON decodes the interval to verify the status of the transmitter, If the Transmitter, Finalizes the control action, or a power or carrier loss occurs, then the Receiver decoder will acknowledge and  turn the Receiver output OFF.

Complies with FCC part 15.247 sub E on Continuous transmission timing

9FS1   Fail Safe Receiver Module

Operating voltage 12VDC
Input:  Dry Contact
Output:  10A SPDT
Enclosure Weatherproof IP65,  9x9x4 inches

Wiring   Fail Safe sequence mode, Modules

NOTE: Transmitter or  receiver not supplied,

9FS1 Single Channel Fail Safe Module   $398.99




9FS4  Four (4) channel continuous mode module

Same operation as the single mode but 4 channels.

Fail Safe sequence module, Reset on: Power, Carrier failure or
 end of transmission control

Complies with FCC part 15.247 sub E on Continuous transmission timing

9FS4   Receiver Module

Operating voltage 12VDC
Input:  Dry Contact
Output:  8A SPST
Enclosure Weatherproof IP65,  9x9x4 inches


NOTE: Transmitter or receiver not supplied,

9FS4 Four (4) Channel Fail Safe Module   $698.99





9PR4 Four (4) channel Transmitter Memory mode module

OPERATION: Upon a channel closure at the Transmitter an interval pulse is sent to the Receiver to latch ( ON) the correspondent channel. When at the Transmitter these channel opens, a second pulse is sent to the Receiver to latch ( OFF)

9PR4   Transmitter  Module

Operating voltage 12VDC
Input:  Dry Contact

Enclosure Weatherproof IP65,  9x9x4 inches

NOTE: Transmitter or receiver not supplied,

9PR4 Four (4) Channel Memory TX Module   $697.99




 9SS1  Start/Stop Receiver output Module

OPERATION:   Transmitter sends a momentary pulse via Channel One (1)  to START;  the Receiver Control Module Output  turns ON. It will stay ON Until the transmitter  sends the STOP signal via Channel Two (2) to turn the Receiver Output OFF


Start/Stop output Module

9SS1:  Two input  from the receiver,
One output to energize the external contactor

Operating voltage 12VDC
Input:  Dry Contact
Output:  10A SPDT
Enclosure Weatherproof IP65,  9x9x4 inches

Wiring Start Stop Receiver Module

NOTE: Transmitter or receiver not supplied,


9SS1   Start Stop Module  $399.99





Accessories

 Power Adapter, 931224
 AC 100-240V to DC 12V, 2A
24W Switching Power Supply

931224 Power Supply $39.99





RF Cable ( Made on order )

Coaxial Cable
Shielded Low Loss 97%
With 2x  PL -259 Connectors


12Ft Coax Cable $49.99

30Ft Coax Cable $89.99

50Ft Coax Cable $149.99

100Ft Coax Cable $199.99




DISCLAIMER:
(*)
 Maximum continuous transmission time per FCC; 5 minutes
Radio control equipment in not to be used in life safety.

Radio Installations shall be performed by a certified professional
