Specifications:
Automation, for small
or large applications,
Real time maintenance,
Silos, Conveyors,
Pumps,
HVAC,
Irrigation, Lights, Generators,
Trucks, Boats, Building automation.
•
Monitoring
and control,
stand
alone plc

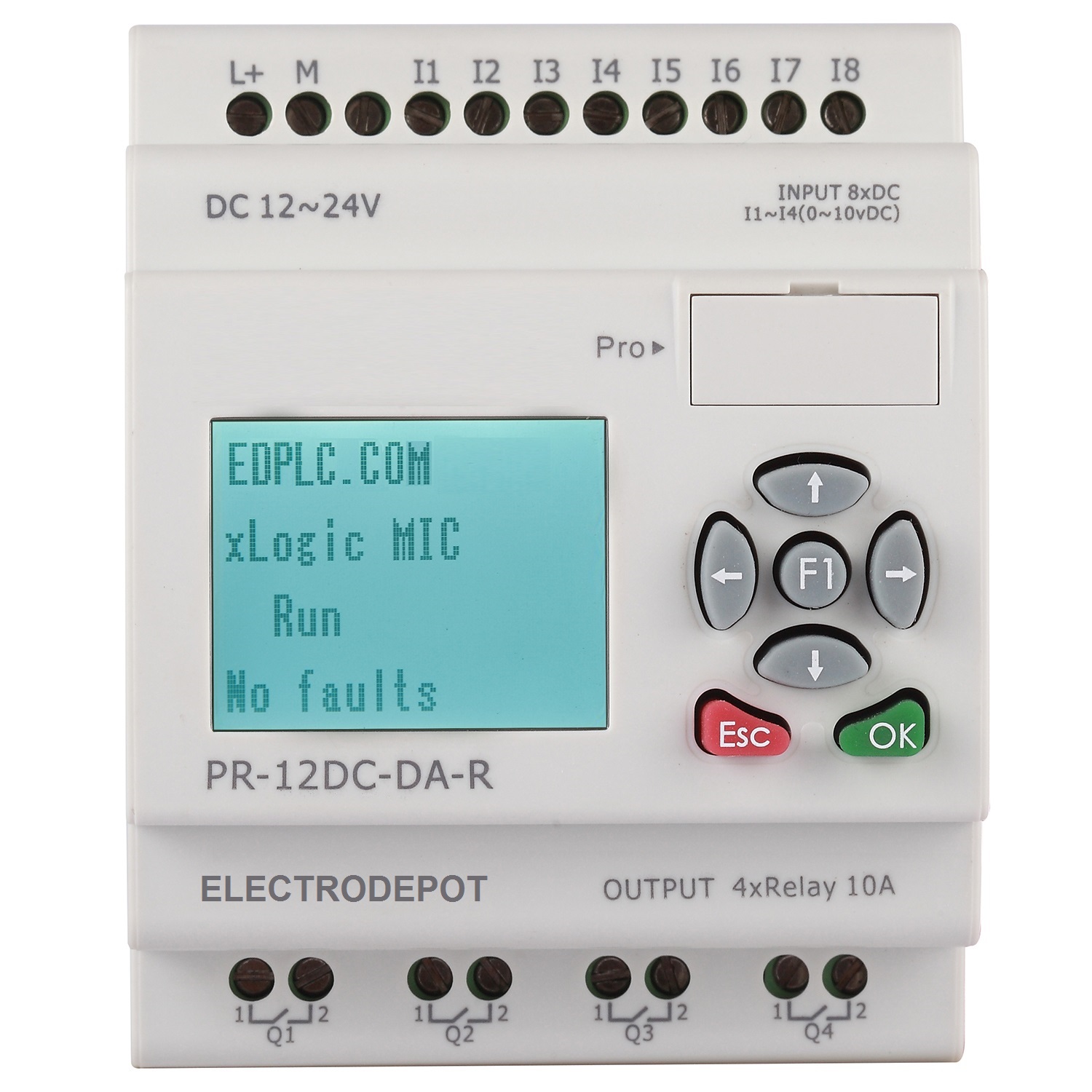

With all the features from the most advanced PLC controllers. with RTC
and multiple timers,
Pre programmed functions, display up to 64 messages, Analog, PWM
outputs, support
DataLink and Modbus, expandable up to 186 I/O
• Modular design for
flexible applications
• Digital, analog and communications modules
• Programming
Drag & Drop on
®Windows
• Easy configuration
•
Multiple 365 day time clocks & counters
Programming via RS-232C or USB
• IP20 enclosed case
with HMI or LED I/O
• Built-in Real-Time Clock
• DIN-rail mount
|
Power: |
12~28.8 VDC 100mA |
|
Digital Inputs: |
8 Inputs, OFF <5VDC, ON>15VDC |
|
Digital Outputs: |
4 Relay outputs 8 Amp |
|
Output Rating: |
265VAC / 30VDC Relay Outputs, 8A Resistive Load |
|
Analog Inputs: |
4 DC inputs can be used as Analog 0-10VDC 10bit resolution |
|
Expansion: |
Optional on Series PW only, up to 186 I/O |
|
LCD Display: |
4 line, 16 character |
|
Keypad: |
7 Programming Keys |
|
Program Memory: |
300 Lines or 260 Function Blocks |
|
Program Storage: |
Retentive Flash Memory |
|
Real Time Clock: |
Built In - Daylight Saving Feature |
|
Timers: |
31 (0.01Sec ~ 9999 min) |
|
Power Drain: |
150mA @12V, 90mA @24V |
|
Approvals: |
UL / cUL / CE |
|
Warranty: |
1 Year |
(*)
Each PLC includes: Instructions to Download the latest
Programming
software version and manuals. |
Applications:
-
Industrial automation
-
Traffic control
management
-
Intelligent pump controllers
-
Greenhouses and agricultural machinery
-
Building, Home automation
-
Utility & special-purpose vehicles
-
Heating, air-conditioning and ventilation
-
Lighting systems and time schedule
-
Alarm and security systems
-
Packing machines
-
Outdoor control
applications
-
Generator control &
maintenance

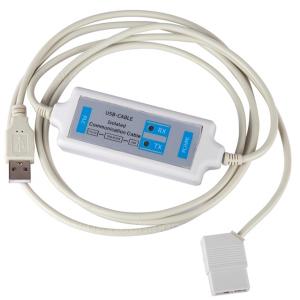

ED2USB Programming Interface
|
